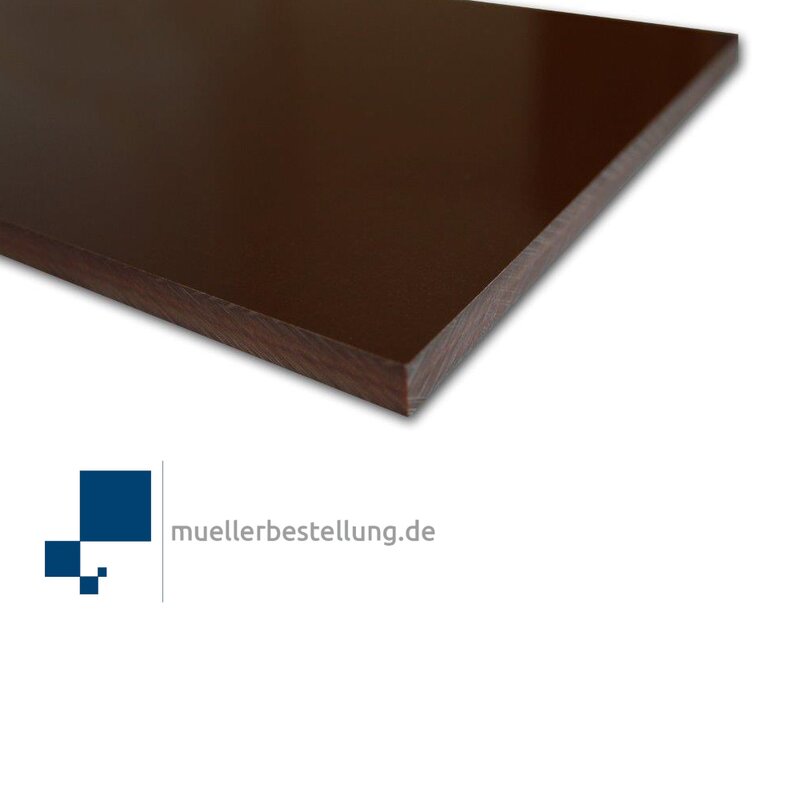

Pertinax | Hard paper | 3D Printing | Permanent printing plate (ground on one side) 4,0 mm (ground on one side) 354 x 260 mm
Description
High quality continuous printing plate for various 3D printers and filament fabrics made of Pertinax, with always the same quality. Pertinax is mounted as an exchangeable plate on the heating bed with aluminium plate. Pertinax is easy to clean, the printing part can be taken out of the printer with the plate and is also shatterproof against glass etc.
Finish: sanded on one side, wide belt sanding machine 80 grit
Heat resistance: approx. up to 120°C
Pertinax ri 40000 is a board laminate made of phenolic resin and paper and complies with the standard types:
iec 60893 pf cp 201; din 7735 hp 2061.
Pertinax ri 40000 has very good insulating properties up to insulation class e (120°c), it also has very good mechanical properties.
Pertinax ri 40000 is supplied in a brown colour.
Pertinax is a registered trademark of Dr Dietrich Müller GmbH, Germany.
Other dimensions available on request.
On request we also supply individual blanks or components manufactured on our CNC milling machines.
Finish: sanded on one side, wide belt sanding machine 80 grit
Heat resistance: approx. up to 120°C
Pertinax ri 40000 is a board laminate made of phenolic resin and paper and complies with the standard types:
iec 60893 pf cp 201; din 7735 hp 2061.
Pertinax ri 40000 has very good insulating properties up to insulation class e (120°c), it also has very good mechanical properties.
Pertinax ri 40000 is supplied in a brown colour.
Pertinax is a registered trademark of Dr Dietrich Müller GmbH, Germany.
Other dimensions available on request.
On request we also supply individual blanks or components manufactured on our CNC milling machines.
Characteristics
Marke:
Pertinax
