Flexiso NMNM FI 14070; 0,45 mm thick; 297 x 420 mm
Description

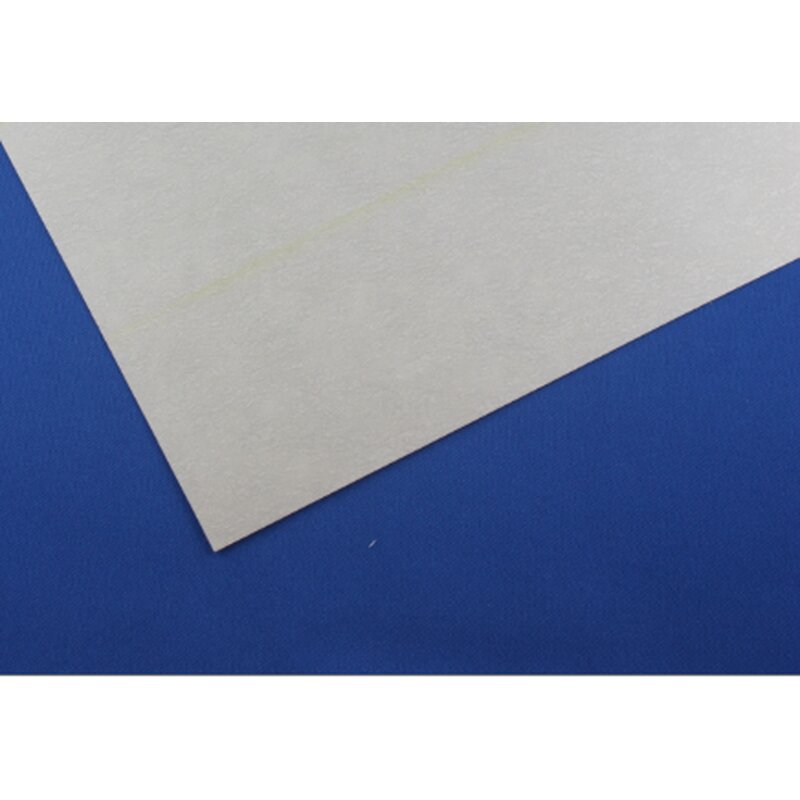

Cut from Flexiso nmnm 14070; 0.45 mm thick, approx. 297 x 420 mm.
The package contains 1 pc. blank.
Flexiso nmnm 5 fi 14070 is a flexible four-layer material consisting of two polyester films laminated with calendered aramid paper of thickness 50 ?m.
Flexiso nmnm 5 fi 14070 is used for applications up to and including 155°c.
Flexiso nmnm 5 fi 14070 is a flat insulating material with particularly good mechanical properties, such as tensile strength and edge tear resistance combined with high dielectric strength.
Flexiso nmnm 5 fi 14070 has a smooth surface and can therefore also be easily processed in fully automated production lines.
Flexiso nmnm 5 fi 14070 is mainly used in electric motors as slot insulation and deck slider, as well as phase insulation.
The package contains 1 pc. blank.
Flexiso nmnm 5 fi 14070 is a flexible four-layer material consisting of two polyester films laminated with calendered aramid paper of thickness 50 ?m.
Flexiso nmnm 5 fi 14070 is used for applications up to and including 155°c.
Flexiso nmnm 5 fi 14070 is a flat insulating material with particularly good mechanical properties, such as tensile strength and edge tear resistance combined with high dielectric strength.
Flexiso nmnm 5 fi 14070 has a smooth surface and can therefore also be easily processed in fully automated production lines.
Flexiso nmnm 5 fi 14070 is mainly used in electric motors as slot insulation and deck slider, as well as phase insulation.
Characteristics
Marke:
Flexiso
