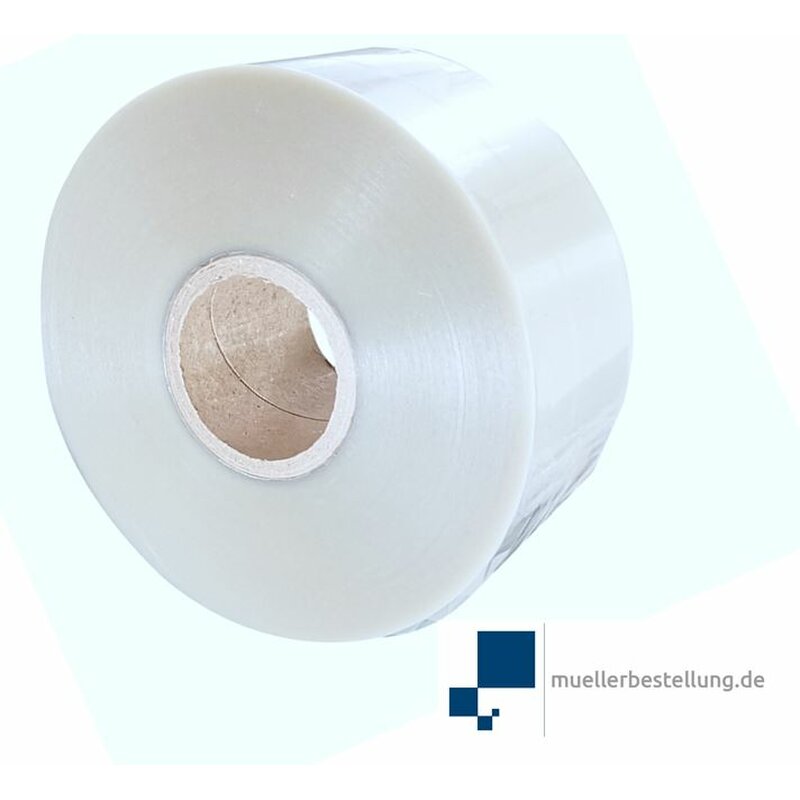

Mylar A - Polyester film - strength: 0,023 mm, width: 925 mm, length: 10 meter
Description
Mylar a - Polyester film - cut lengths
Roll width: 925 mm (tolerance +/- 10 mm), thickness and length selectable
Available thickness: 0.023 mm, 0.036 mm, 0.050 mm, 0.075 mm, 0.100 mm, 0.125 mm, 0.190 mm, 0.250 mm, 0.350 mm
construction:
Mylar a is an electrical insulating film made of polyethylene terephthalate and is used as a surface insulating material up to and including insulation class b (130°c).
Property:
Mylar a is tensile and tear resistant, dimensionally stable and shows excellent electrical properties.
The material has good heat and cold resistance to the most common solvents.
application
Mylar a is used as interlayer and cover layer insulation in transformers, chokes and relay coils.
Mylar a is also used as slot and phase insulation, as cover slider and nut sleeve, as well as an insulation layer in electrical devices and as a carrier material for electrical insulation tapes.
It is also used in the production of stencils. excellent for airbrush.
Shipping:
The dispatch takes place as running meter commodity on roll.
Other formats, cuttings, punched parts or shaped parts can be produced on special request.
Roll width: 925 mm (tolerance +/- 10 mm), thickness and length selectable
Available thickness: 0.023 mm, 0.036 mm, 0.050 mm, 0.075 mm, 0.100 mm, 0.125 mm, 0.190 mm, 0.250 mm, 0.350 mm
construction:
Mylar a is an electrical insulating film made of polyethylene terephthalate and is used as a surface insulating material up to and including insulation class b (130°c).
Property:
Mylar a is tensile and tear resistant, dimensionally stable and shows excellent electrical properties.
The material has good heat and cold resistance to the most common solvents.
application
Mylar a is used as interlayer and cover layer insulation in transformers, chokes and relay coils.
Mylar a is also used as slot and phase insulation, as cover slider and nut sleeve, as well as an insulation layer in electrical devices and as a carrier material for electrical insulation tapes.
It is also used in the production of stencils. excellent for airbrush.
Shipping:
The dispatch takes place as running meter commodity on roll.
Other formats, cuttings, punched parts or shaped parts can be produced on special request.
