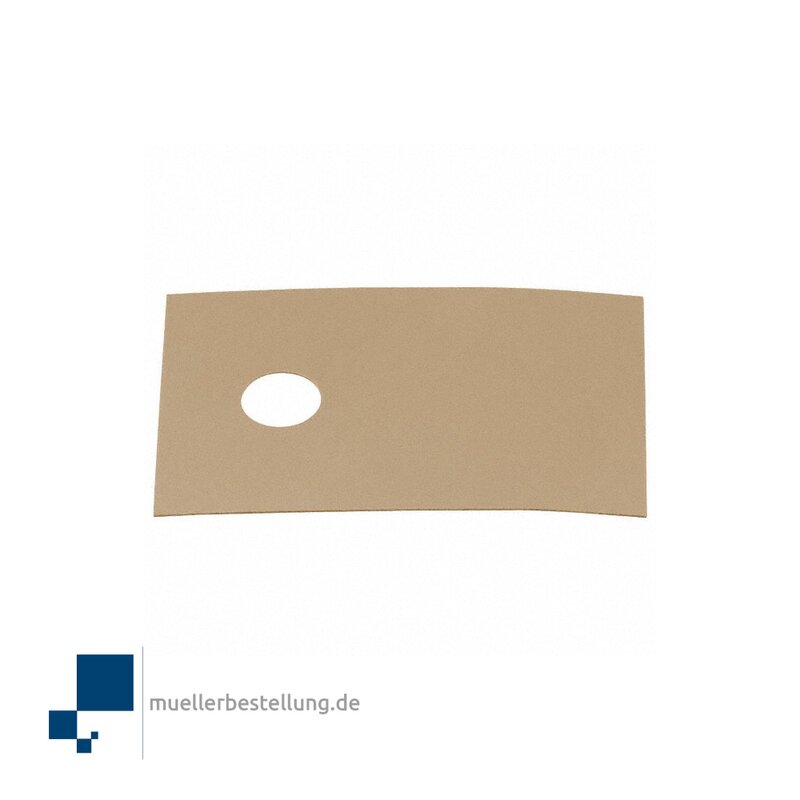

BERGQUIST SIL PAD TSP K1300
BERGQUIST SIL PAD TSP K1300 is the high performance insulator developed in collaboration with DuPont. BERGQUIST SIL PAD TSP K1300 combines special Kapton MT polyimide film with boron nitride filled silicone rubber. The result is a product with good cut-through properties and excellent thermal performance.
BERGQUIST SIL PAD TSP K1300 is designed to replace ceramic insulators such as beryllium oxide, boron nitride and alumina. These insulators are expensive and they break easily. BERGQUIST SIL PAD TSP K1300 eliminates the breakage and costs much less than ceramics.
TYPICAL PROPERTIES
Physical properties
Hardness, Shore A, ASTM D2240 90
Breaking strength, ASTM D1458, KN/m 5
Elongation , 45º to distortion and filling, ASTM D412,% 40
Tensile strength, ASTM D412, MPa 35
Electrical properties
Dielectric breakdown voltage, ASTM D149 (VAC, min) 6,000
Dielectric constant, ASTM D150 @ 1,000 Hz 3.7
Volume resistivity, ASTM D257, ohm-meter 1×1012
Thermal Properties
Thermal conductivity, ASTM D5470, W/(m-K) 1.3
Thermal resistance Bergquist Flat Plate Test Method, ºC-in2 /W 0.2
Thermal vacuum weight loss (TML), as manufactured, NASA SP-R-0022A, % 0.36
Volatile Condensable Material (VCM), as manufactured, NASA SP-R-0022A, in % 0.09
